New more aggressive model based on the M10
Alloy –Carbon Hybrid main frame
Downtube is oversized at the b/b & the seat tube is squared at the b/b to increase stiffness.
Carbon seat stay
New small and lighter drop outs
1”1/8 to 1”1/4 headtube
Fork has alloy crown and drop outs with carbon legs.

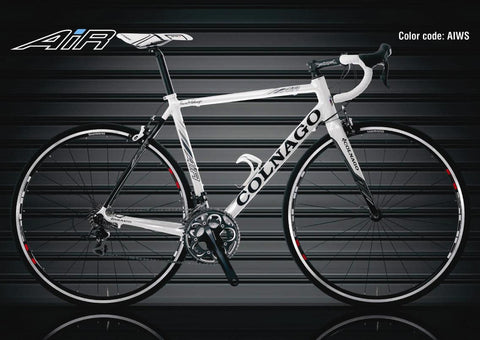

| Frame | COLNAGO AIR |
| Fork | COLNAGO STREET 3.0 |
| Chain Wheel | SHIMANO FC-R565 50X34T |
| Front Derailleur | SHIMANO 105 |
| Rear Derailleur | SHIMANO 105 |
| Derailleur Lever Set | SHIMANO 105 |
| Gear | SHIMANO TIAGRA 10S 11-25T |
| Wheel Set | SHIMANO WH-R501 |
| Tyres | CONTINENTAL ULTRA SPORT 700x23C |
| Brakes | COLNAGO X-BRAKE 3 |
| Handle Bar |
DEDA RHM EL |
| Handle Bar Stem | DEDA EL |
| Saddle | COLNAGO Z7 |
| Seat Post | DEDA RS EL |
| Head Set | FSA NO.44E/51 28.6-46.8-33 H=16.5 |
| Seat Clamp |
34.9 X 32.0 |
